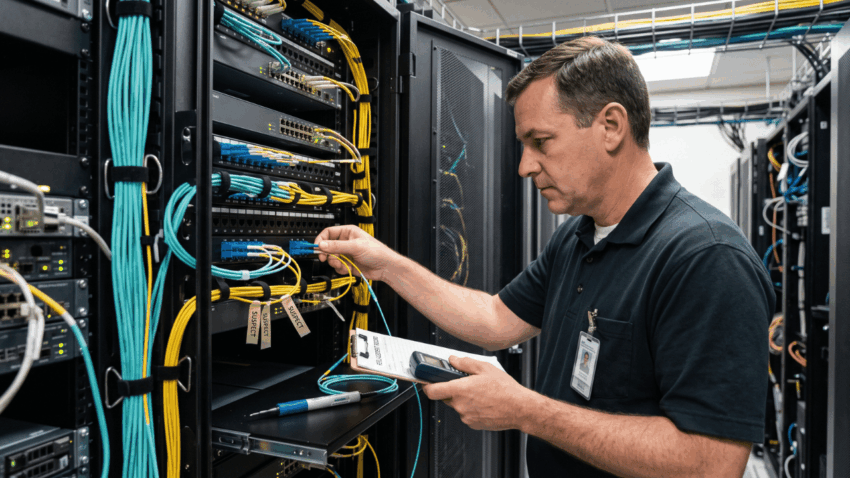

A rack link fails after routine maintenance, and the nearest spare looks identical to the removed cable. Swapping it seems sensible. Yet a fiber optic patch cord can have the right connector shape and the wrong fiber type, polish or polarity. Wrong replacement and intermittent loss are maintenance problems that appearance alone cannot settle.
Good replacement practice starts with the complete assembly: the fiber optic patch cord, its fiber optic connectors and any LC uniboot mechanism used to manage the paired fibers. For technology teams maintaining crowded racks, documenting those details makes the spare useful before the next outage, instead of turning the maintenance window into a search for missing specifications.
Read the fiber optic patch cord as an assembly
A patch cord joins equipment or patch-panel ports through a terminated length of fiber, with a connector specification at each end and a fiber specification and mechanical construction between them, all of which need to appear in the ordering information. Short cord is not a specification.
Record both endpoints before disconnecting anything. Use the port identifiers and the cable’s markings, then compare them with the approved network record. If the labels disagree, stop and trace the route. Copying an incorrect label onto the replacement only makes the next fault harder to isolate.
Keep the removed cord identifiable until diagnosis is finished, marking the symptom and original location so it can be tested without being confused with an accepted spare or returned to the spare bin by someone who did not witness the fault. A failed link does not prove a failed cord.
Fiber optic connectors that fit can still be wrong
Connector shape is only part of the interface. End-face polish must match the mating connection, and adapters must suit the assembly. Never force a connection that resists insertion or select a polish simply because the housing color looks familiar. Check the part description and equipment documentation.
T&S Communications lists an LC/UPC-LC/UPC duplex unibody A-B OS2 single-mode LSZH patch cord with a 2.0mm jacket and insertion loss of ≤0.2dB. The same catalogue lists an LC/PC-LC/PC duplex LC uniboot A-B OM3 multimode LSZH cord with a 2.0mm jacket and insertion loss of ≤0.3dB. These limits belong to those listed assemblies.
The similar external format does not make the cords substitutes. Keep the complete description in the spare-parts list and request the test conditions behind the insertion-loss figure. A catalogue value without its measurement boundary is not a reliable acceptance limit for an assembled rack route.
LC uniboot handling and the polarity trap
An LC uniboot assembly brings the paired fibers into a compact cable arrangement. Some designs provide a mechanism for changing polarity. The maintenance benefit depends on using the correct design and recording the resulting transmit-to-receive path. Compact packaging alone tells the technician nothing about how reversal is performed.
Before adjusting polarity, check the manufacturer’s instructions and trace the duplex path through the panels; swapping individual ends at random until a link appears can leave the live configuration different from the drawings, with consequences that surface during an unrelated cable change. Trace first, then adjust.
Use a simple before-and-after sketch for a permitted polarity change. Label the assembly’s final orientation and retain the original fault observation. If the cord is moved to another rack, recheck the new path; a polarity setting that was correct in the previous route is not evidence that it is correct everywhere.
Single mode vs multimode fiber is a spare-parts decision
The active interfaces and installed cable plant determine the required fiber. Replacing a damaged cord with another type does not upgrade the remaining route. This is particularly easy to overlook when a patch panel hides the permanent cable and the visible equipment cords look interchangeable.
Separate spare stock by the approved assembly description, not just length or color, and verify the installed fiber grade before consolidating inventory for an older rack, where the visible equipment cords may conceal differences between permanent cable routes. Fewer stock items are not always an improvement.
Length also affects maintenance access. A cord pulled taut can load the connector when a device moves, while excess cable can obstruct access and catch during unrelated work. Choose a route with usable service slack and follow the cord manufacturer’s bend and handling instructions. Do not invent a universal bend limit for different jacket constructions.
Test the suspect cord before blaming the switch
The Fiber Optic Association describes a single-ended patch-cord loss test in which the cord is reversed to evaluate the connector at its other end. It also describes testing both ends together with the cable-plant method. The distinction matters: a result must identify the test method before someone compares it with a supplier’s connector-loss specification.
Use a suitable test setup, retain the result against the cord identifier and inspect and clean connections using the approved equipment procedure before repeating a measurement affected by contamination, keeping the observations separate so that cleaning does not conceal a damaged connector or unsuitable fiber. Record the actual finding.
For intermittent loss, reproduce the installed routing without stressing the cable beyond its handling limits. Check whether the symptom follows the suspect assembly when a known-good, matching replacement is installed. Change a single identified element at a time; several simultaneous swaps destroy the comparison that makes fault isolation useful.
Why a low loss figure does not clear the entire link
The ≤0.2dB figure on T&S Communications’ listed LC/UPC duplex unibody OS2 cord and the ≤0.3dB figure on its listed LC/PC duplex LC uniboot OM3 cord are product-specific insertion-loss claims. Neither figure describes the total loss through a customer’s patch panels, permanent cabling and equipment connections.
Separate component acceptance from link acceptance. A spare that passes its own test still needs the correct fiber, polarity and mating interfaces for the installed route. Conversely, a route with excessive loss does not identify the defective part without further investigation.
When requesting a replacement from T&S Communications’ optical interconnect range, include the full assembly description and the test method used to investigate the fault. Ask for confirmation of the replacement specification. That conversation is more useful than asking for a better cable without describing what the present cable must do.
Close the rack without introducing a new failure
Check the final cable route with doors and cable-management covers in their operating positions, looking for pinching, tension at the boot and obstacles that make adjacent connectors difficult to remove, because the next technician needs access without disturbing links that have already passed acceptance. Link-up is not the last check.
Keep optical interfaces protected while disconnected and use the equipment supplier’s optical safety procedures. A dust cap is a storage aid, not evidence of a clean end face. Inspect the connection as required before mating, and avoid touching exposed optical surfaces while working around a dense panel.
Record the final route and service status after the rack is closed. If the fault returns only after dressing the cables, investigate that physical change before replacing the switch. A controlled maintenance record preserves the connection between the symptom and the action that preceded it.
A replacement record that the next technician can use
Keep a patch-cord replacement record with the rack documentation. It should let another technician reproduce the selection and understand why the old cord was removed. Use these fields:
- Original and final endpoint identifiers, with the approved fiber type and connector polish.
- Replacement assembly reference, length, jacket construction and recorded polarity.
- Inspection findings, cleaning performed and the disposition of the removed cord.
- Test method, equipment identification, measured result and agreed acceptance basis.
- Service checks after final cable routing, plus any unresolved symptom.
Review the spare-bin label against that record before restocking. The objective is repeatability: a technician should be able to choose the right fiber optic patch cord without guessing what the previous installer meant. If the assembly cannot be identified, resolve the documentation gap while the route is accessible.
